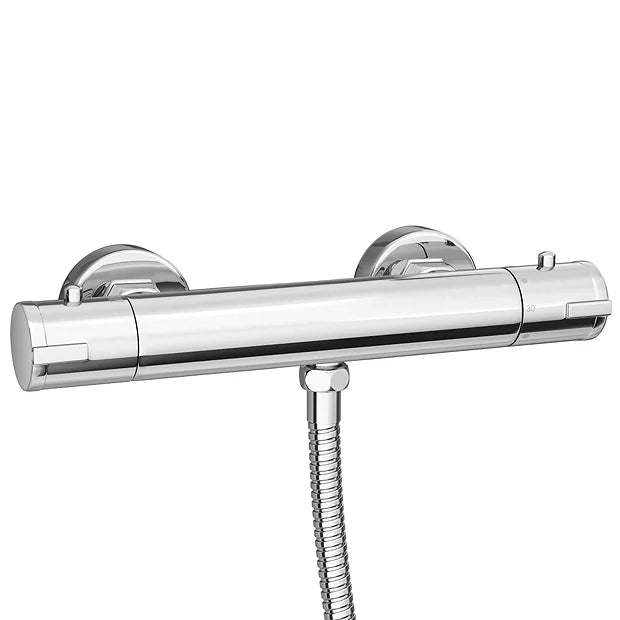

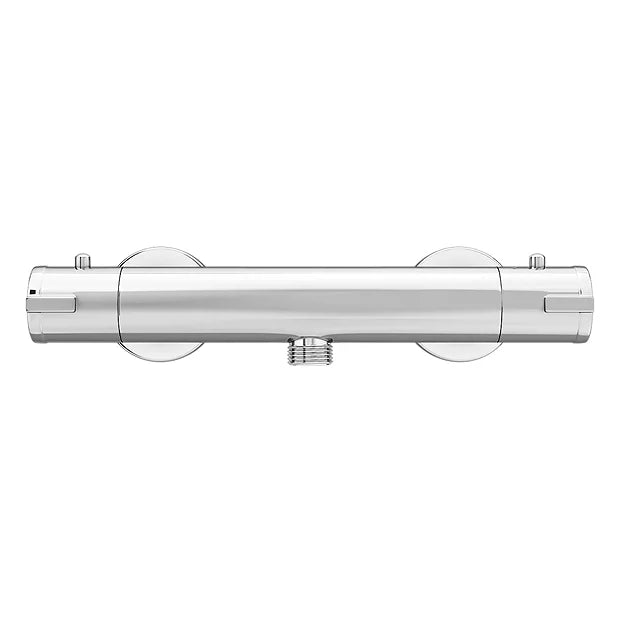

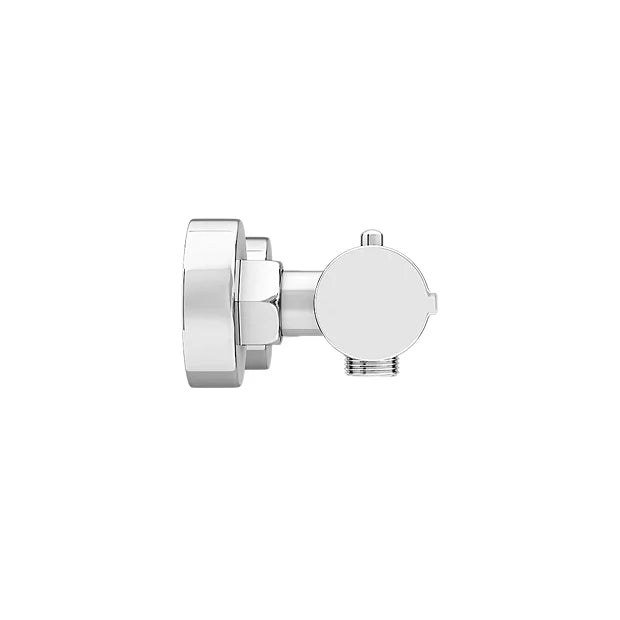

Cruze Round Bottom Outlet Thermostatic Bar Shower Valve
Sold out
£40.00
- Width: 270mm
- Depth: 79mm
- Height: 40mm
- Style: Modern
- Range: Bar Showers
- Handles: Round
- Colour/Finish: Polished Chrome
- Material: Solid Brass Internals
- Bottom Outlet
- Thermostatically controlled
- Built-in anti-scald device

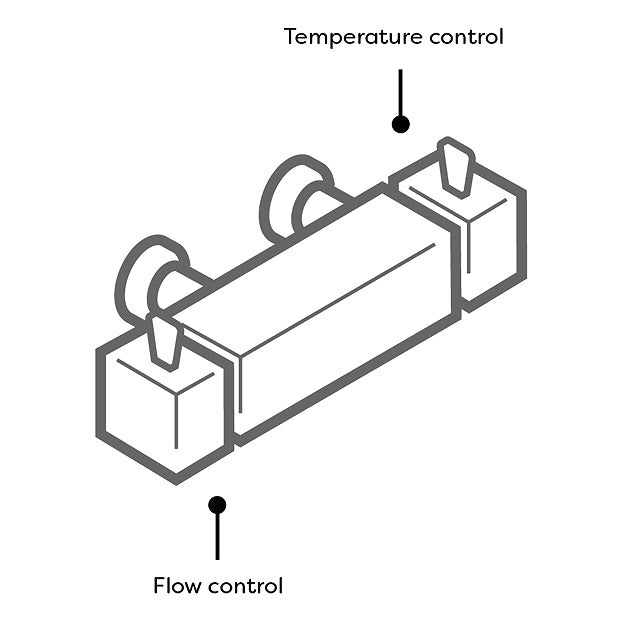

- Separate controls for temperature and flow
- Easy installation
- Factory pre-set temperature 38°
- Recommended Water Pressure: 0.5 bar to 5 bar
- 150mm between pipe inlet centres
- Outlet: 15 mm (1/2" BSP)
- Hot water temperature 55 to 85 Degrees
- With gravity fed systems a pump will be required, we recommend a universal or negative head pump
- Flow Rates:
- 0.5 bar - 8.2 L/M
- 1 bar - 12.3 L/M
- 2 bar - 17.9 L/M
- 3 bar - 22.1 L/M
- 4 bar - 25.6 L/M
- 5 bar - 28.6 L/M
All measurements are approximate
